Description

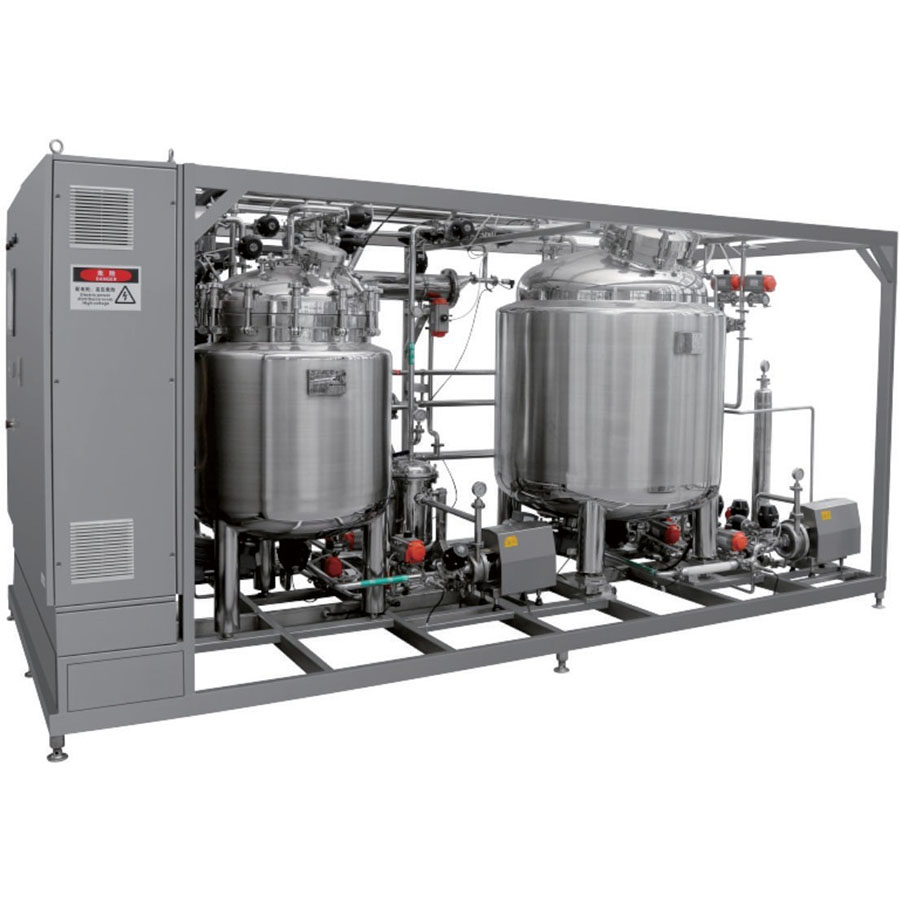

This system is adopt hermetic cycle system design according to clean area grade contact part adopt SS316L material the system have the GIP unit, it can wash automatic it adopt titanium filter production meet to GMP standard We can design according to the client process and requirement
Inner Matter
Vertically barrel-shaped
(inner barrel touched with medicine liquid) Inner material: 316L (inported from Japan) Inner finish: 0.28-0.45 µm
Outer material: 304 mirror board or matplate Heating coil: 304
Material for heat insulation:
pearl cotton (hight temperature resistance and aging resistance)
Working pressure: Normal pressure
Working temperature: 60°C-100°C
Sterilization pressure: 0.15-0.3Mpa
Sterilization temperature: 121°C-132°C
