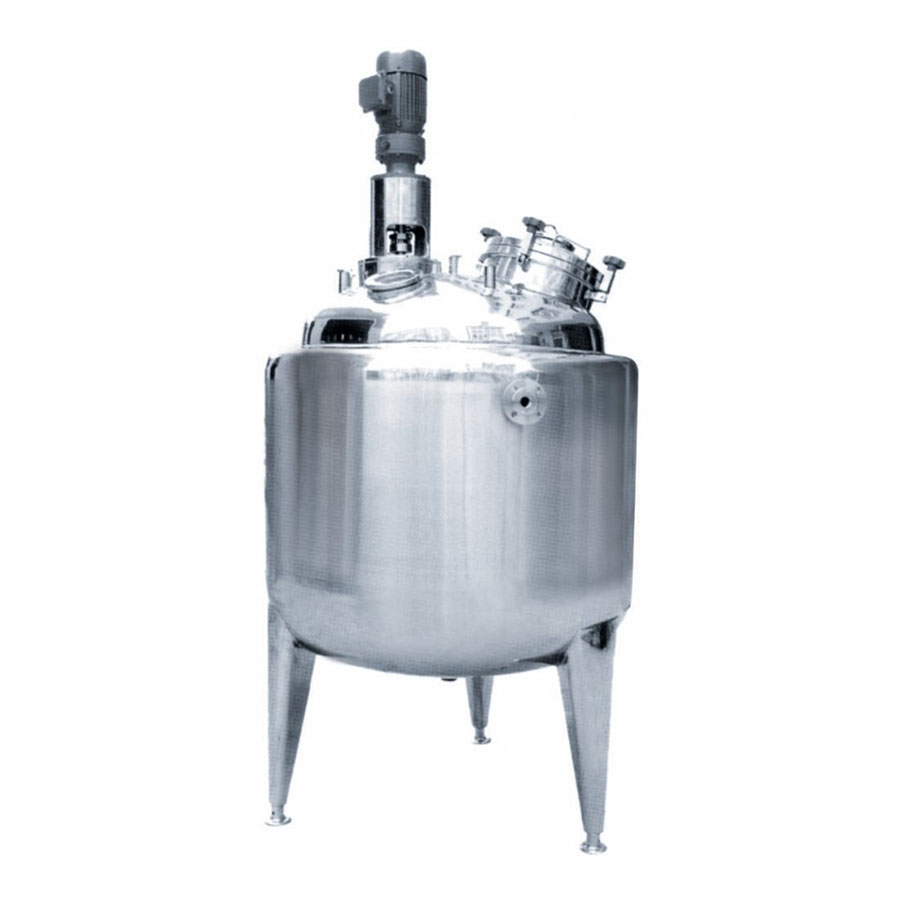

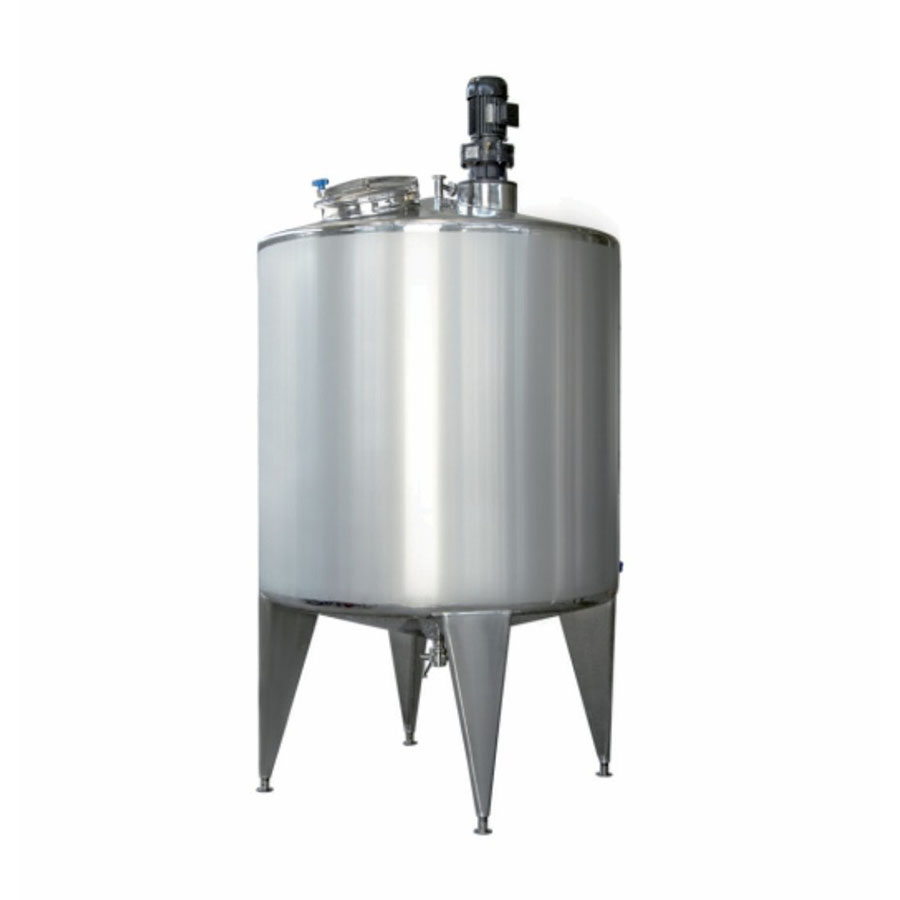

Collocation Tank, Concentrated­ Collocation Tank, Diluter-collocation Tank

Description

Description:

1. Such series vessel has the functions of heating and heat preservation, manufactured, pressure-tested and checked in accordance with the ((Technology specifications for steel welded vessel)) .

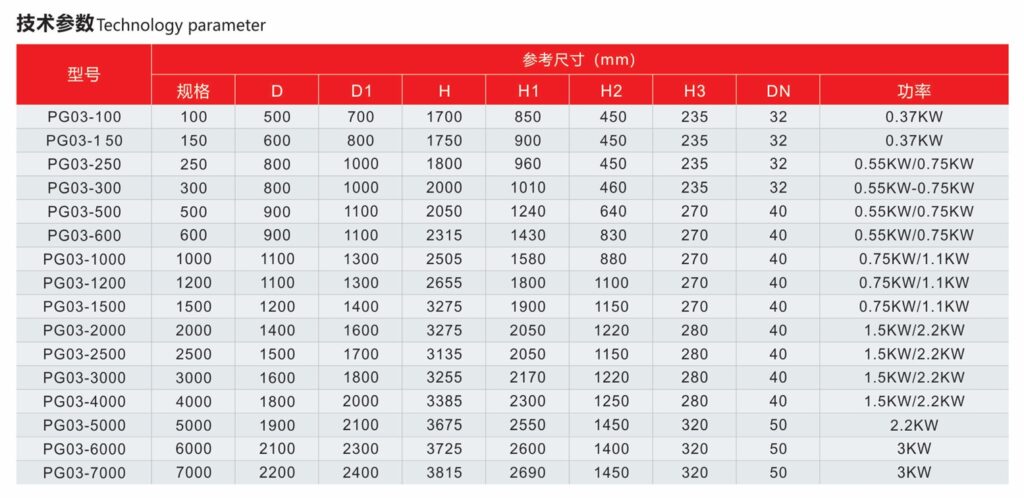

2. The standard specifications from 100L to 7000L and order-design or order-manufacture are all available.
3. The sealing of agitating shaft is of mechanical sealing of imported health The speed reducer is of Frand , a famous brand from Germany or SEW. The rotation speed 8for agitation is 36-53 ram. The control by inverter is available.
4. The joint is of quick-acting type in compliance with ISO standard. The inner part is made of 316L or 304.

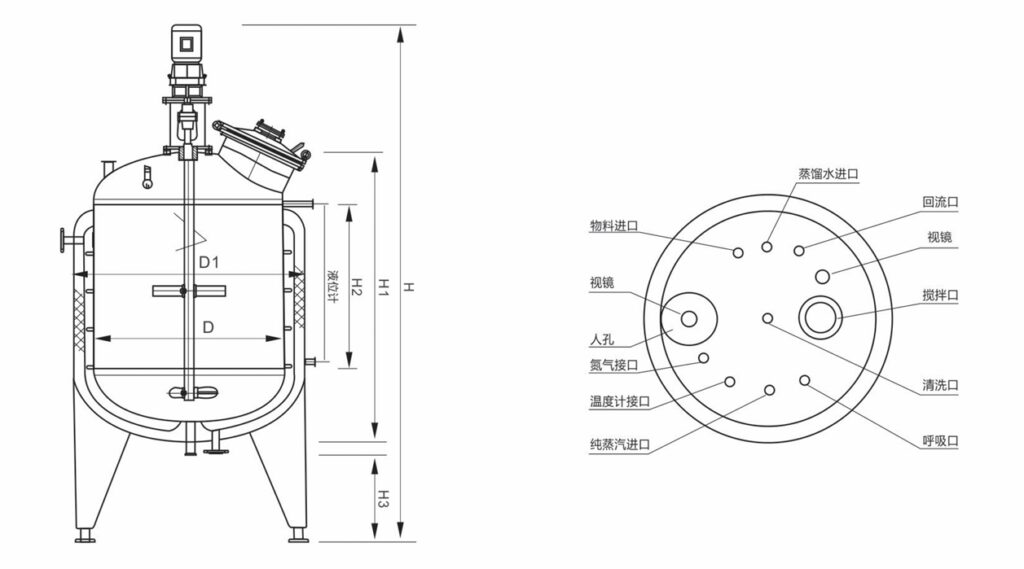

5. At the tank body are respectively fluid level gauge(the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening, thermometer (digital-indicated type or dial type), CIP universal tank-cleaning device, viewing mirror at lamp hole. some fluid inlets&outlets and herringbone hole.

Characteristic:

Inner figuration: Vertically barrel-shaped(inner barrel touched with medicine liquid)

Inner material: 316L(imported from Japan) Inner finish: 0.28-0.45 µ m

Outer material: 304 mirror board or mat plate Heating coil: 304

Material for heat insulation: pead cotton (high temperature resistance and aging resistance)

Outer temperature: <= 10°C

Working pressure: Normal pressure

Working temperature: 60°C-100°C

Sterilization pressure: 0.15-0.3MPa

Sterilization temperature: 121°C-132°C
