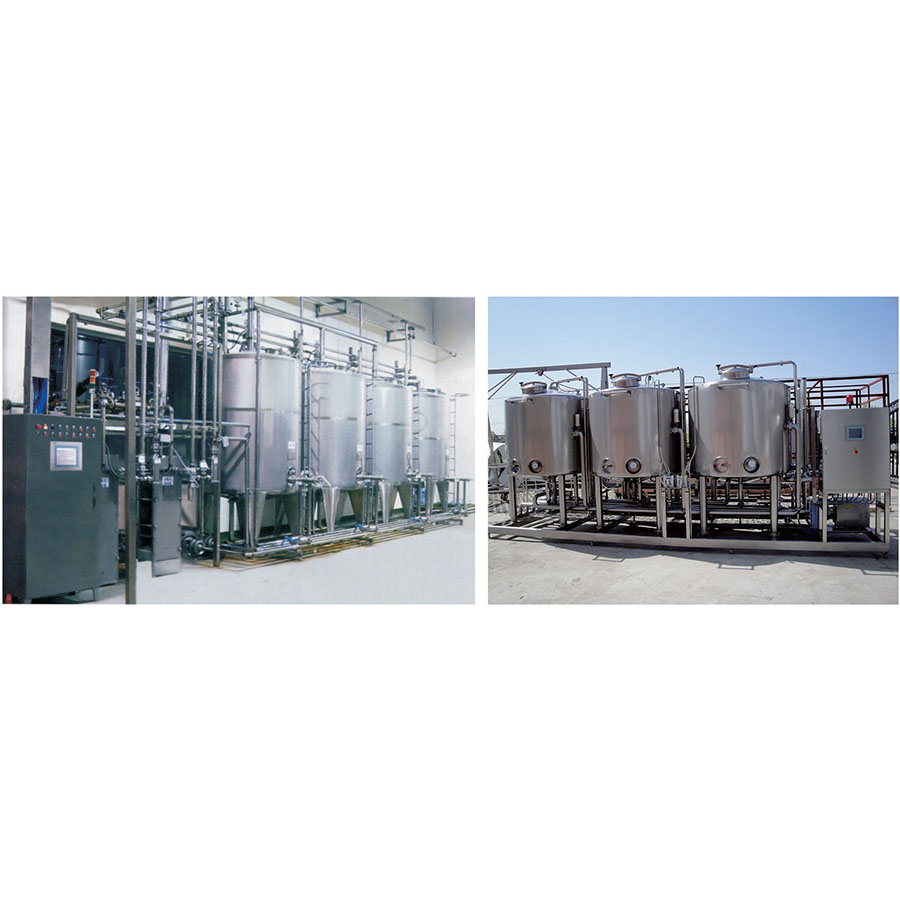

Cip Cleaning Equipment

Description

Equipment Summary

Full name of CIP system is cleaning in place System. Chinese name is cleaning in place system. It is a system, in which, producing equipments (tanks, pipes and valves etc)and whole production line is cleaned and disinfected circularly in a closed loop without being dismantled or opened. It is applicable for cleaning of equipments and pipes in industries of dairy, beverages, alcohol. Agricultural and sideline products.

CIP cleaning system Is composed of acid tanks, alkali tanks, hot-water tanks, pure-water tanks, back-water tanks, disinfect-water tanks, thick-acid tanks, thick-alkali tanks, heat exchanger, pumps, peripheral valves and pipes. These tanks can be allocated according to technical requirements. Generally, the CIP system only comprising acid tanks, alkali tanks and hot-water tanks is sufficient for requirements of cleaning.

CIP system produced by our company have the characteristics that, they are safe, energy-saving, highly efficient, and easy to operate and maintain. Mainly are:

(1)Manual CIP station

(2)Semi-automatic CIP station

(3)Auto CIP station system

(4)Before materials compounding, the processing system carries out automatic CIP, which is more advanced, automated, reliable and safe. Therefore, data sampling and exchanging on whole production line can be realized for linkages each couple of equipments.

The structures of CIP can be divided into joint type and split type. The CIP systems of the two types, for each type, there are four types of heating: plate heating,lined pipe heating, coil-pipe heating, and through heating. The joint type of CIP system has specifications from one-loop to three-loop and tank volume from 1T to ST. The split type of CIP system has specifications from one-loop to six-loop and tank volume from 1Tto 10T
